SCS Archery Timers

SCS Archery Timers provides a tool for archers to train for NAA/FITA and NFAA competitions.

Two Timer versions are available:

Timer for Windows is a professional tournament timing system. Supports full NFAA and NAA/FITA tournament timing requirements.



Support can be provided for:

• Basic Indoor venues

• Extensive Indoor venues

• Outdoor venues

• Control of existing light systems

• Multiple Monitors and Projectors

• Remote Control operations

• Custom Venues



Personal Timer for Android is a timer which will run on an Android based Phone or Tablet.

Contact scsarchery@scsenginc.com for additional information.

SCS Archery Timer for Windows

SCSArchery Timer

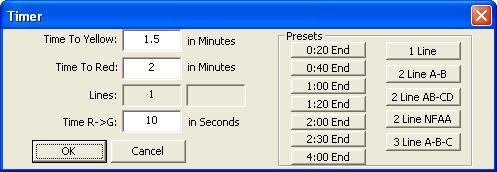

Timer User Interface (B32)

·        Time To Yellow: enter the time in minutes when the Yellow light should be lit after the Green light.  If the time is 0(zero), the timer will be considered to be in manual mode.

·        Time To Red: enter the time in minutes when the Red light should be lit after the Green light.

·        Lines: The total number of Shooter Lines that will need to be supported.

·        Time R->G: Time between Move-To-The-Line-Red and Start-Shooting-Green.

·        OK: start the timer sequence.

·        Cancel: go back to the main Bow Setup program.

·        Light Sequence:
o       Red: 2 Tones, Shows which line of archers should move to the shooting line, then waits 10 Seconds.
o       Green: 1 Tone, counts time down, archers start shooting
o       Yellow: counts time down, usually 30 seconds left, continue shooting.
o       Red: 2 or 3 tones depending on how many lines have been selected, archers stop shooting.  The sequence repeats until the end of the round.
o       Emergency Red: 5 tones archers stop shooting immediately.

·        Mouse (Remote Control) Interface:
o       Left button (Right Press): Moves to the next light in the sequence.
o       Right button (Left Press): Emergency.  Turns light Red and issues 5 tones.

·        Keyboard Interface:
o       Home: Lamp Test.  Turns on all external lights (Red, Green, and Yellow) for 2 seconds.
o       Page Down: moves to the next light in the sequence.
o       End, Page Up, Space Bar: Emergency.  Turns light Red and issues 5 tones.
o       Esc: exit timing sequence.

·        Numeric Keyboard Interface:
o       1: Starts Line 1 (A/B).  Turns light Red and issues 2 tones and starts timer.
o       2: Starts Line 2 (C/D).  Turns light Red and issues 2 tones and starts timer.
o       3: Turns light Red and issues 2 tones.  (Manual)
o       4: Turns light Green and issues 1 tone.  (Manual)
o       5: Turns light Yellow and issues 1 tone.  (Manual)
o       6: Turns light Red and issues 3 tones.  (Manual)
o       7: No Function.
o       8: Lamp Test.  Turns on all external lights (Red, Green, and Yellow) for 2 seconds.
o       9: Moves to the next light in the sequence.
o       0: Emergency Red.  Turns light Red and issues 5 tones.

SCS Archery Personal Timer for Android

SCS Archery Personal Timer provides a tool for archers to train for NAA/FITA and NFAA competitions. Ends can be set for 2:00, 2:30 and 4:00. Whistle and color indicators are used to provide athlete with the same cues that are used during tournaments.

Price: $0.99 through the Android Market (https://market.android.com/)
